 How Quickly-Insertable Nuts work |
 |

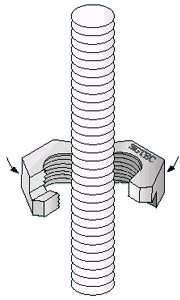

Insert Quickly-Insertable Nut
to the desired location.
|

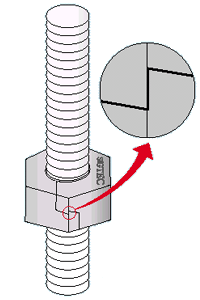

Closed Quickly-Insertable Nut.
Make sure it is tightly fastened.
|
In case, To remove Quickly-Insertable Nut after placed
Use flat blade screwdriver into a niche
on the nut to open it. |
| Advantages |
|
- No need to spin nuts. Just place to the desired position.
- Best for retrofit job.
- Eliminate the extra cost.
- Damaged threaded rod is no longer a trouble.
- Expedite completion time.
|

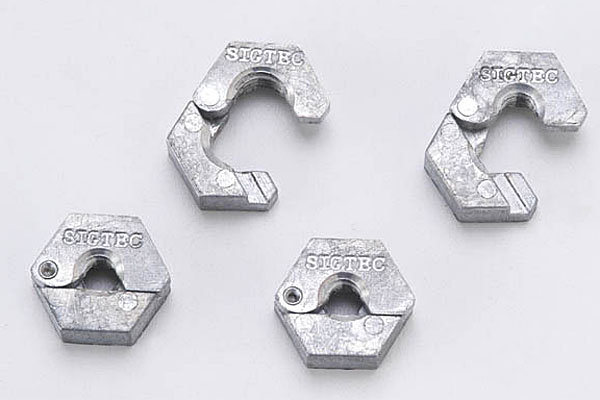

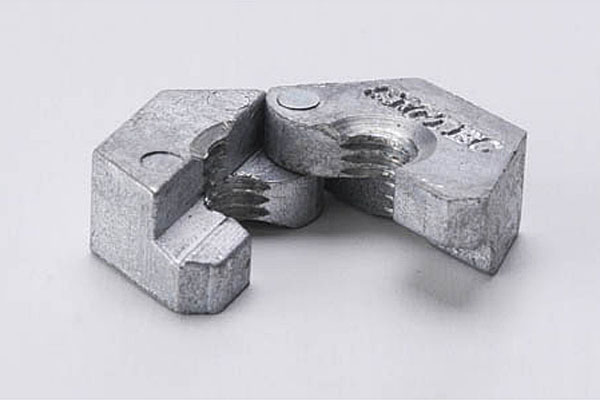

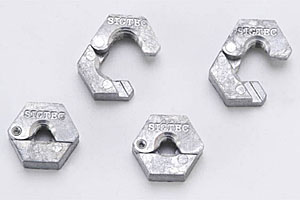

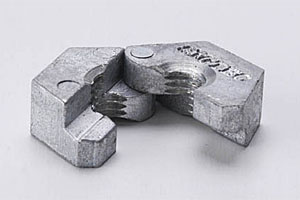

| Quickly-Insertable Nut is available in zinc die-cast and in metric. UNC and
UNF. |
|
| Size |
AF × Thickness
(m/m) × (m/m) |
Breaking Load
N (kgf) |
| M6 |
19 × 8 |
7845 (800) |
| M8 |
19 × 8 |
14220 (1450) |
| M10 |
19 × 8 |
14220 (1450) |
| M12 |
27 ×13 |
22065 (2250) |
| M16 |
27 ×13 |
39227 (4000) |
|
|
|
| W1/4 |
19 × 8 |
8826 (900) |
| W5/16 |
19 × 8 |
14220 (1450) |
| W3/8 |
19 × 8 |
13729 (1400) |
| W1/2 |
27 ×13 |
35304 (3600) |
| W5/8 |
27 ×13 |
30891 (3150) |
|
|
|

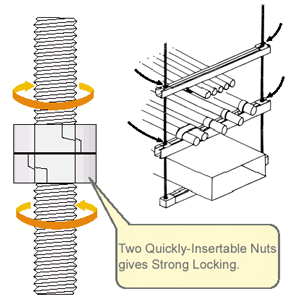

| Application |
|
 |
