Part# (sizes) |
Maximum
Pull Strength |
Minimum
thickness of the board |
Maximum
thickness of the board |
M6 1/4" |
3923N (400kgf) |
8m/m |
Depends on the bolt |
M8 5/16" |
4413N (450Kgf) |
10m/m |
Ditto |
M10 3/8" |
4903N (500Kgf) |
12m/m |
Ditto |
|
Item code |
Carton Qty. |
Including |
Board thickness + fixture thickness(mm) |
Dia. of pre-hole(mm) |
Dia. of threaded bolt |

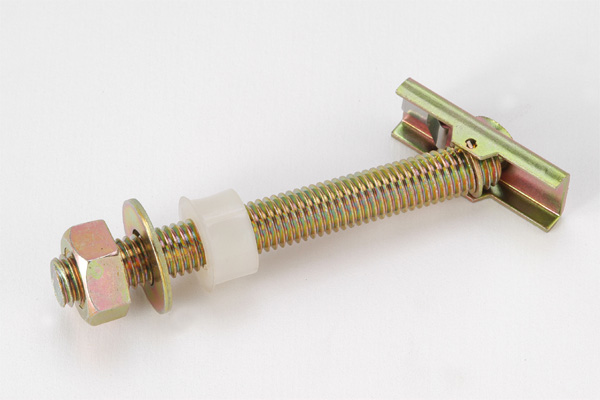

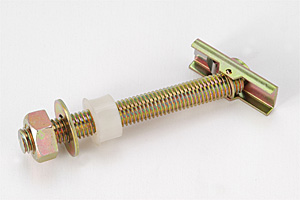

| FA-6×70B |
40pcs×12 |
"FLIP ANCHOR", bush, threaded Bolt(6x70), nut, washer |
8- 40 |
12.5 |
M6 |
| FA-6×85B |
40pcs×12 |
"FLIP ANCHOR", bush, threaded Bolt(6×85), nut, washer |
8- 55 |
12.5 |
M6 |
| FA-6×135B |
40pcs× 6 |
"FLIP ANCHOR", bush, threaded Bolt(6×135), nut, washer |
8-100 |
12.5 |
M6 |
| FA-8×70B |
30pcs×12 |
"FLIP ANCHOR", bush, threaded Bolt(8×70), nut, washer |
10- 40 |
14.5 |
M8 |
| FA-8×85B |
30pcs×12 |
"FLIP ANCHOR", bush, threaded Bolt(8×85), nut, washer |
10- 55 |
14.5 |
M8 |
| FA-8×135B |
30pcs× 6 |
"FLIP ANCHOR", bush, threaded Bolt(8×135), nut, washer |
10-100 |
14.5 |
M8 |
| FA-10×70B |
20pcs×12 |
"FLIP ANCHOR", bush, threaded Bolt(10×70), nut, washer |
12- 40 |
16.5 |
M10 |
| FA-10×85B |
20pcs×12 |
"FLIP ANCHOR", bush, threaded Bolt(10×85), nut, washer |
12- 55 |
16.5 |
M10 |
| FA-10×135B |
20pcs× 6 |
"FLIP ANCHOR", bush, threaded Bolt(10×135), nut, washer |
12-100 |
16.5 |
M10 |
|
Item code |
Carton Qty. |
Including |
Board thickness +
Fixture thickness |
Dia. of pre-hole(mm) |
Dia. of threaded bolt |
Applicable length of bolt |

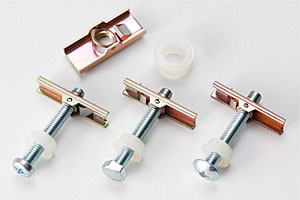

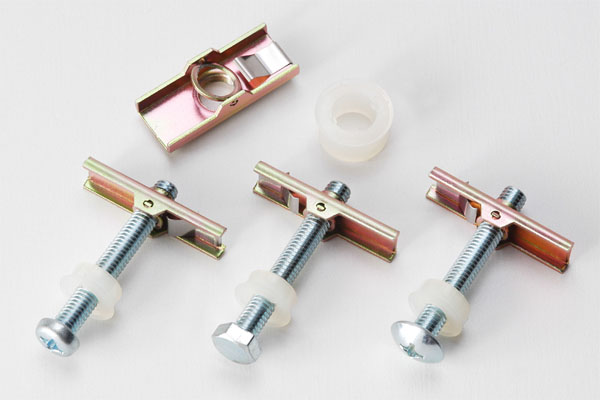

| FA-M6N |
50pcs×5×4 |
"FLIP ANCHOR", bush |
8mm plus length of the bolt |
12.5 |
M6 |
35mm plus (Board thickness + Fixture thickness) |
| FA-M8N |
40pcs×5×4 |
"FLIP ANCHOR", bush |
10mm plus length of the bolt |
14.5 |
M8 |
35mm plus (Board thickness + Fixture thickness) |
| FA-M10N |
30pcs×5×4 |
"FLIP ANCHOR", bush |
12mm plus length of the bolt |
16.5 |
M10 |
35mm plus (Board thickness + Fixture thickness) |
| FA-W1/4N |
50pcs×5×4 |
"FLIP ANCHOR", bush |
8mm plus length of the bolt |
12.5 |
W1/4 |
35mm plus (Board thickness + Fixture thickness) |
| FA-W5/16N |
40pcs×5×4 |
"FLIP ANCHOR", bush |
10mm plus length of the bolt |
14.5 |
W5/16 |
35mm plus (Board thickness + Fixture thickness) |
| FA-W3/8N |
30pcs×5×4 |
"FLIP ANCHOR", bush |
12mm plus length of the bolt |
16.5 |
W3/8 |
35mm plus (Board thickness + Fixture thickness) |
|
