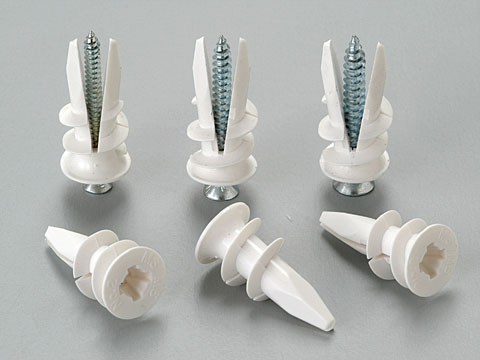

Gypsum Board Anchor "SIGTEC PLUG - White Reinforced Nylon" PAT.
Click to enlarge image

Click to enlarge image

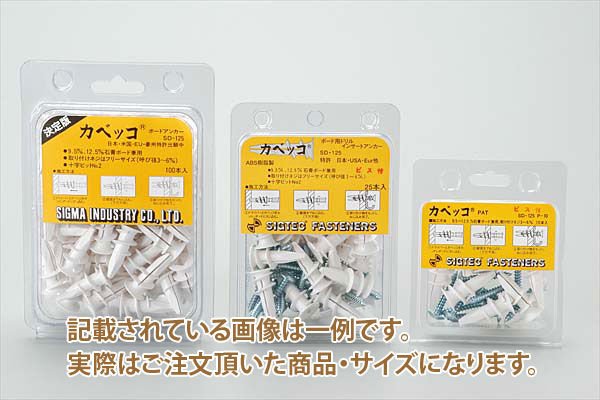

(from left) SD-125 P-100, SD-125 P-25, SD-125 P-10
  1. Self-drilling: Pre-drills its own hole using a special drilling point designed for gypsum board.
  2. With #5 up to 1/4" tapping screw.
  3. Use in 3/8", 1/2" plaster board.
  4. Installs with #2 Phillips.
Part#
Carton Qty.
SD125 P100 100pcs × 5 × 4
SD125 P25 25pcs × 10 × 8
SD125 P10 10pcs × 10 × 8
SD125 BULK 5000pcs

Board Thickness
Max. Pull Strength
Max. Sear Strength
9.5mm (3/8")
196N(20kgf) - 235n(24kgf)
M3(1/8") - M6(1/4")
490N(50kgf) - 588N(60kgf)
M3(1/8") - M6(1/4")
12.5mm (1/4")
216N(22kgf) - 255N(26kgf)
M3(1/8") - M6(1/4")
539N(55kgf) - 883N(90kgf)
M3(1/8") - M6(1/4")

Promotion Video
Play Streaming Video (by Windows Media Player)



Also see Gypsum Board Anchor "SIGTEC PLUG - Alloy of Zinc".
