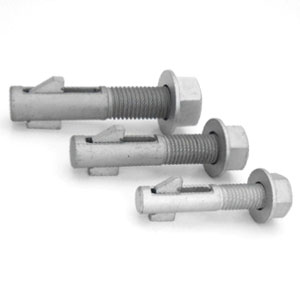

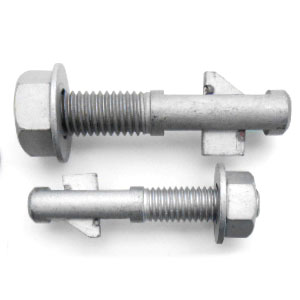

Flip Bolt® GEOMET® COATING
Heavy-duty Blind Anchor for Hollow Wall and Steel Structures
flip bolt geomet coating

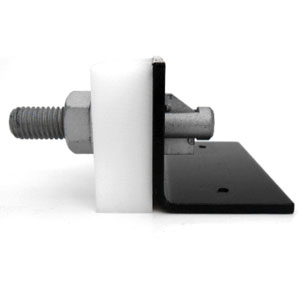

Horizontal work
flip bolt geomet coating

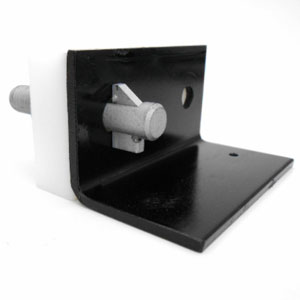

Vertical work
flip bolt geomet coating flip bolt geomet coating
flip bolt geomet coating flip bolt geomet coating
FEATURE
  • Water-based chemical solution
  • Completely chromium-free
  • Metallic silver appearance
  • Outstanding resistance to the salt spray test and cyclic corrosion test
  • Superb resistance to heat and corrosion
  • Superior prevention of galvanic corrosion of aluminum
  • No concern for hydrogen embrittlement
  • Overcoat can be applied on GEOMET® coating

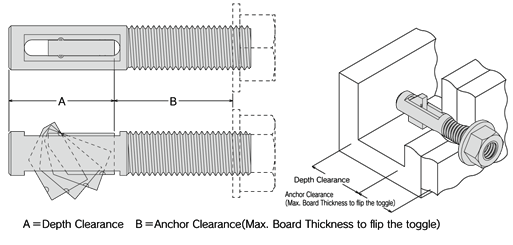

FIXING CONDITIONS
fixing conditions
fixing conditions

tensile

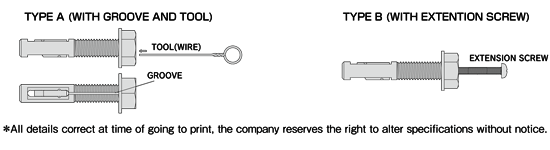

  • CUSTOMIZED VERSIONS ARE AVAILABLE UPON REQUEST AS BELOWCUSTOMIZED VERSIONS ARE AVAILABLE UPON REQUEST AS BELOW

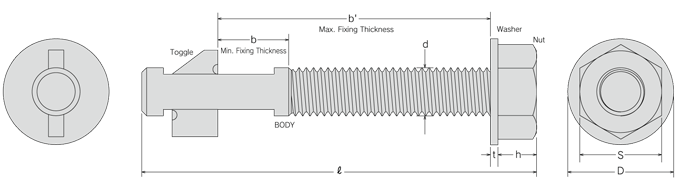

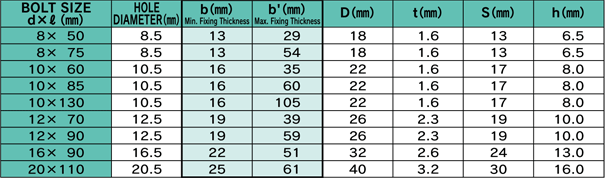

DIMENSIONS
dimensions
dimensions

FIXING INSTRUCTIONS
Vertical work
flip bolt geomet coating
flip bolt geomet coating
flip bolt geomet coating
flip bolt geomet coating
Insert bolt into pre-hole. Hit the washer’s surface to the workpiece 2 or 3 times. Pull and secure bolt with nut and washer supplied. Completed.

Horizontal work
flip bolt geomet coating
flip bolt geomet coating
flip bolt geomet coating
flip bolt geomet coating
Insert bolt with marker pointing ↑ up position. Insert till washer hit the workpiece. Pull and secure bolt with nut and washer supplied. Completed.
  • THERE IS A STICKER ON THE TOGGLE. IT SHOWS UPSIDE DIRECTIONS. PEEL OFF THE STICKER BEFORE INSERT THE FLIP BOLT INTO THE HOLE.
  • IT MUST HAVE ENOUGH DEPTH CLEARANCE WHICH NEED ABOUT 10mm SPACE.
  • JUST IN CASE, IF TOGGLE WON’T FLIP CORRECTLY, PLEASE TRY TO HIT 2-3 TIMES THEN TOGGLE FLIPS CORRECTLY.

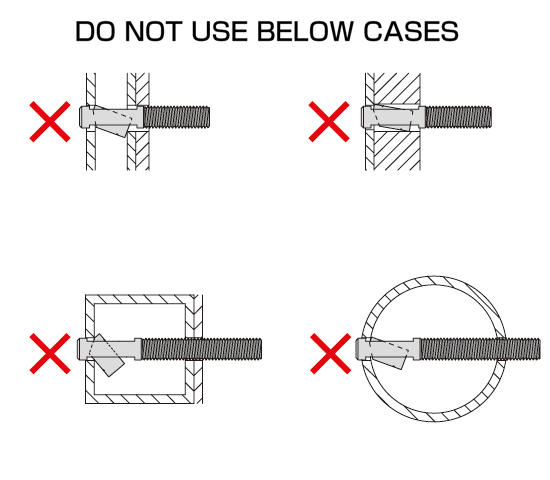

OPERATING PRECAUTIONS
operating precautions
