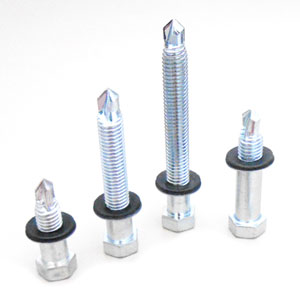

DRILL INSERT / DRILL HANGER
UNITED STATES PATENT NO.5649798
The insert for a hanging bolt (3/8"-16) to deck plate
DRILL INSERT
& DRILL HANGER
(top left)
2000

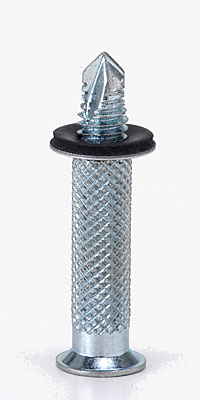

4000

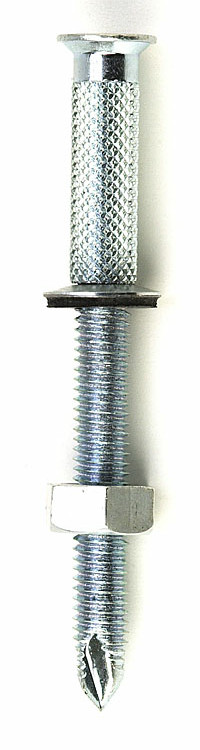

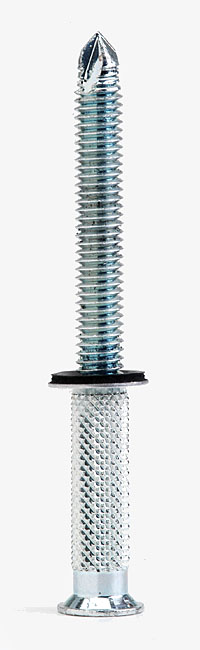

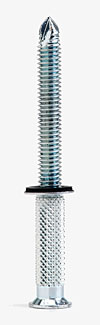

4050

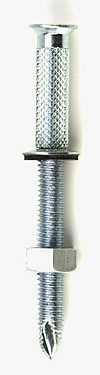

DRILL INSERT

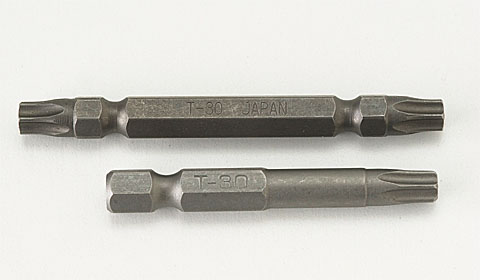

1/4" HEX POWER BIT TW-30X65W
(top)
& T-30X50
(bottom)
Advantages
Just use regular power tools (2300rpm)
Time & labor saving, minimize total cost. It's very easy to install all the equipment you need.
Sealed completely with EDPM washer. Concrete won't be leaked.
Ideal for installing the insulation.

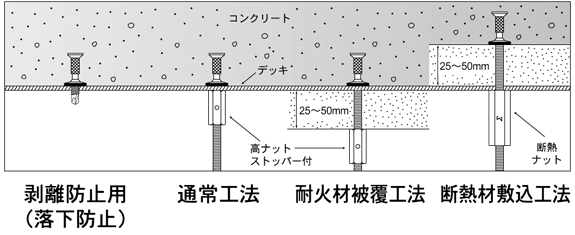

Application

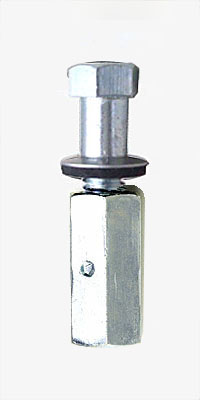

2000
4050

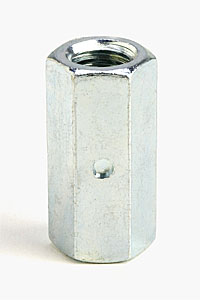

Coupling nut with stopper

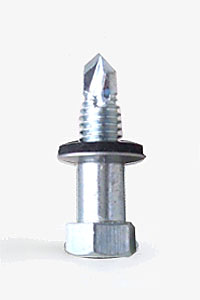

DRILL INSERT
Part#
d × d1
(mm)
L × L1 × L2
(mm)
Max.
Pull Strength
Thickness of
insulation
Carton Qty.
2000
19 × 16
40 × 22.5 × 9
0.6t 120
-
800
2025
19 × 16
65 × 22.5 × 34
0.8t 170
25
450
2050
19 × 16
90 × 22.5 × 59
1.2t 240
50
300
4000
19 × 16
60 × 42.5 × 9
0.6t 120
0.8t 170
-
500
4025
19 × 16
85 × 42.5 × 34
1.2t 240
1.6t 400
25
300
4050
19 × 16
110 × 41.5 × 59
-
50
250
DRILL HANGER
Part#
d (mm)
L × L1 × L2
(mm)
Max.
Pull Strength
Thickness of
insulation
Carton Qty.
3014
19
55 × 30 × 16
14
0.6t 120
0.8t 170
1.2t 240
1.6t 400
500
